Nathan P. McKenney, of Dixon, in the County of Lee, Illinois, USA, filed a patent application on 11 March 1898, Letters Patent No. 613,386, which was approved on 1 November 1898.

The application says “My invention relates to toys and games, and particularly to a game apparatus of the ‘dart and target’ type, and has for its object to provide a dart, adapted to be projected manually, whereof the feather is of four-wing construction and is formed from a foldable blank of paper or other flexible material to adapt it to be replaced with facility”.

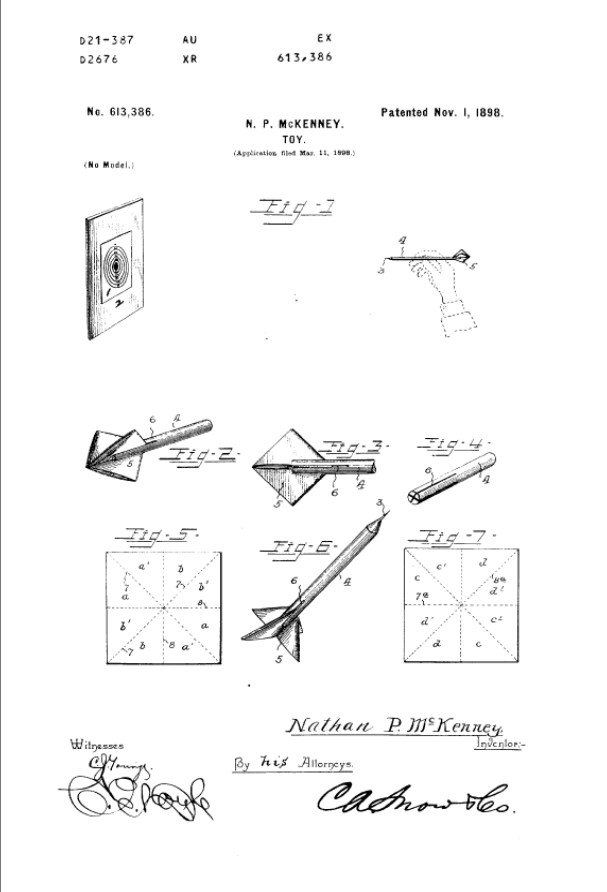

The flights were of two types, preliminary base and waterbomb base folds, as shown below.

The full patent can be viewed online here.

**********

**********
